Products
Hydrogen Technology & Components
NaSTech provides hydrogen technologies and components for companies and projects operating across the hydrogen-energy value chain.
Electrolysers
NaSTech provides electrolyser solutions for hydrogen production applications.
- Product overview
- The ErreDue Mercury G16 is a containerized industrial alkaline electrolyser that produces hydrogen and oxygen from water through electrolysis. It generates the gases in separate streams and is designed for on-site hydrogen and oxygen production, reducing the need for transported gas cylinders. The unit is installed in a containerized enclosure and requires refurbishment, estimated at approximately €100,000.
- Technical specifications
- Model: Mercury G16
Hydrogen production: 10.66 Nm³/h
Oxygen production: 5.33 Nm³/h
Operating pressure: 4 bar standard (up to 5, 12, or 30 bar options) - Applications
- Production of high-purity hydrogen and oxygen for industrial applications.
Fish farming (aquaculture) requiring oxygen supply.
Research and laboratory activities.
Metallurgical processes, including welding, brazing, and heat treatment.
Technical glass cutting and melting.
Generator and turbine cooling in power stations. - Documentation
- Available on request
- Datasheets
- Available on request
Detailed specifications and documentation are available on request.
Bipolar Plates
NaSTech supplies bipolar plate solutions for electrochemical applications, including electrolyser and fuel-cell systems.
- Materials
- Molded graphite or carbon composite, providing high electrical conductivity and corrosion resistance.
- Dimensions
- • Length: Generally between 300 mm to 500 mm (approx. 12 to 20 inches).
• Width: Roughly 100 mm to 150 mm (approx. 4 to 6 inches).
• Thickness: Usually ranges from 1.5 mm to 3.0 mm for molded graphite/composite plates to ensure mechanical strength while keeping the stack compact. - Coating
- Unlike metallic bipolar plates, which require expensive thin-film coatings to prevent corrosion, graphite composite bipolar plates are naturally corrosion-resistant and often do not use an external coating.
- Manufacturing
- Bipolar plates are produced via compression molding, where a highly conductive graphite powder mixed with a polymer resin binder is pressed into a heated, high-precision die under massive hydraulic pressure.
- Performance characteristics
- High Electrical and Thermal Conductivity
Excellent Corrosion Resistance
Optimized Fluid Dynamics - Available configurations
- Available on request
- Technical documentation
- Available on request
Detailed specifications and documentation are available on request.
Hydrogen Components
NaSTech can supply additional hydrogen-system components. This section will be expanded with further components.
Detailed specifications and documentation are available on request.
Additional Product Range
In addition to complete system solutions, NaSTech supplies components, materials and test equipment for hydrogen and electrochemical applications.

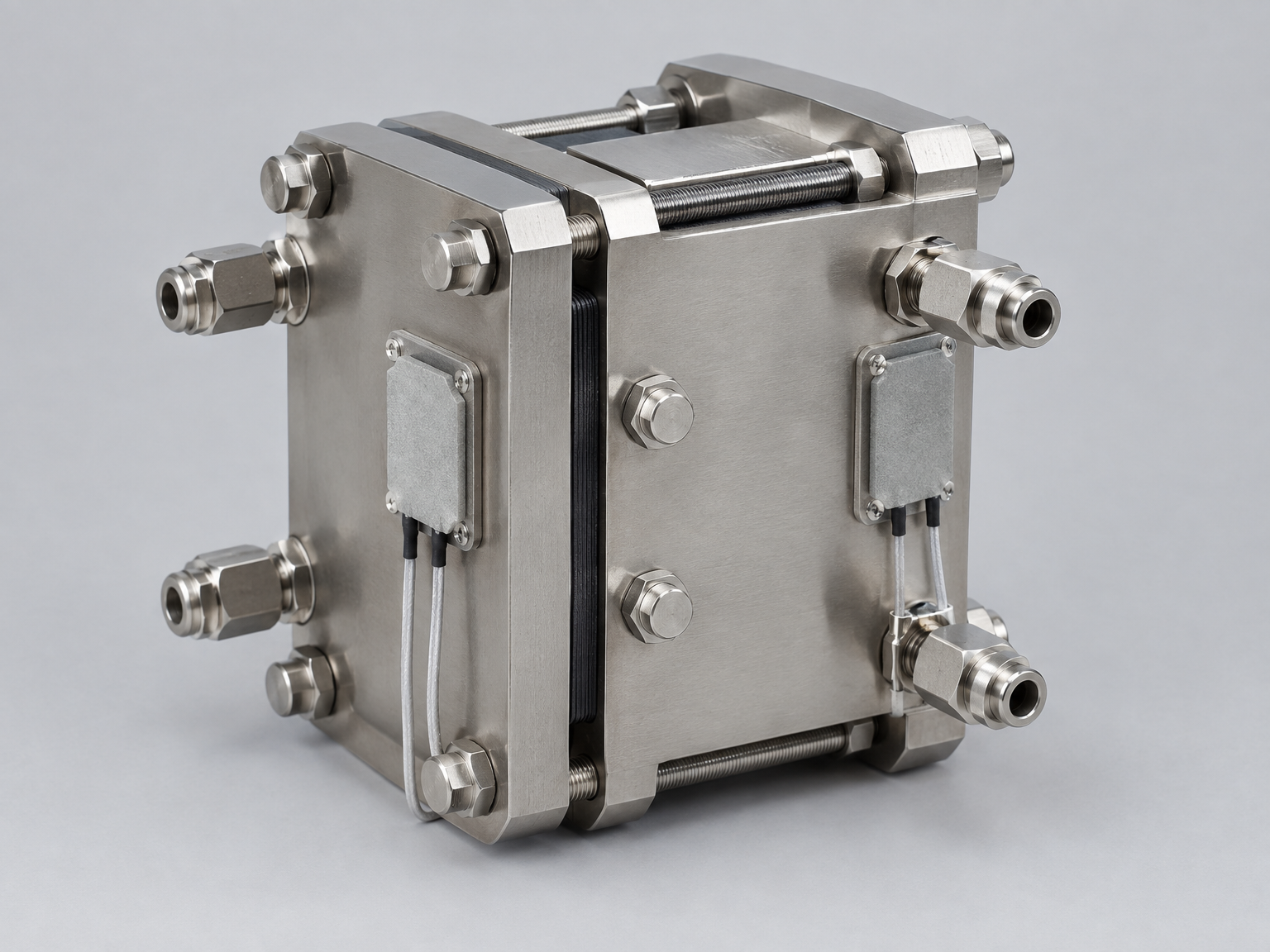

Interchangeable Test Hardware
Single-cell stainless steel test fixture for PEM fuel cell and electrolyser research, with interchangeable graphite, titanium or nickel intermediate plates and integrated heating.
From 86561 NOK

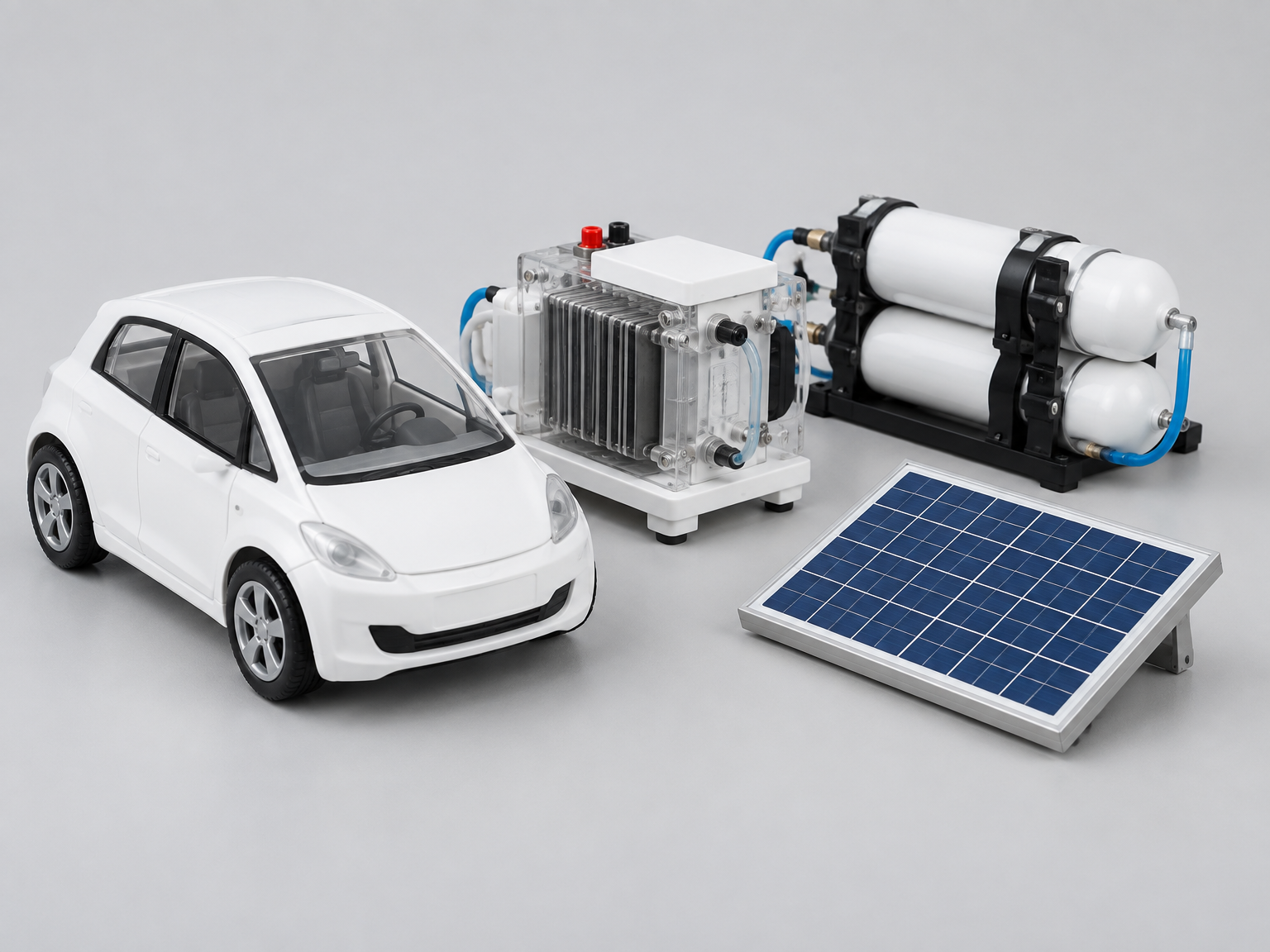

Tutorial HyRunner Kit
Educational hydrogen model car kit with a reversible PEM fuel cell, gas storage and solar module for classroom experiments in electrolysis and fuel cell operation.
From 5445 NOK

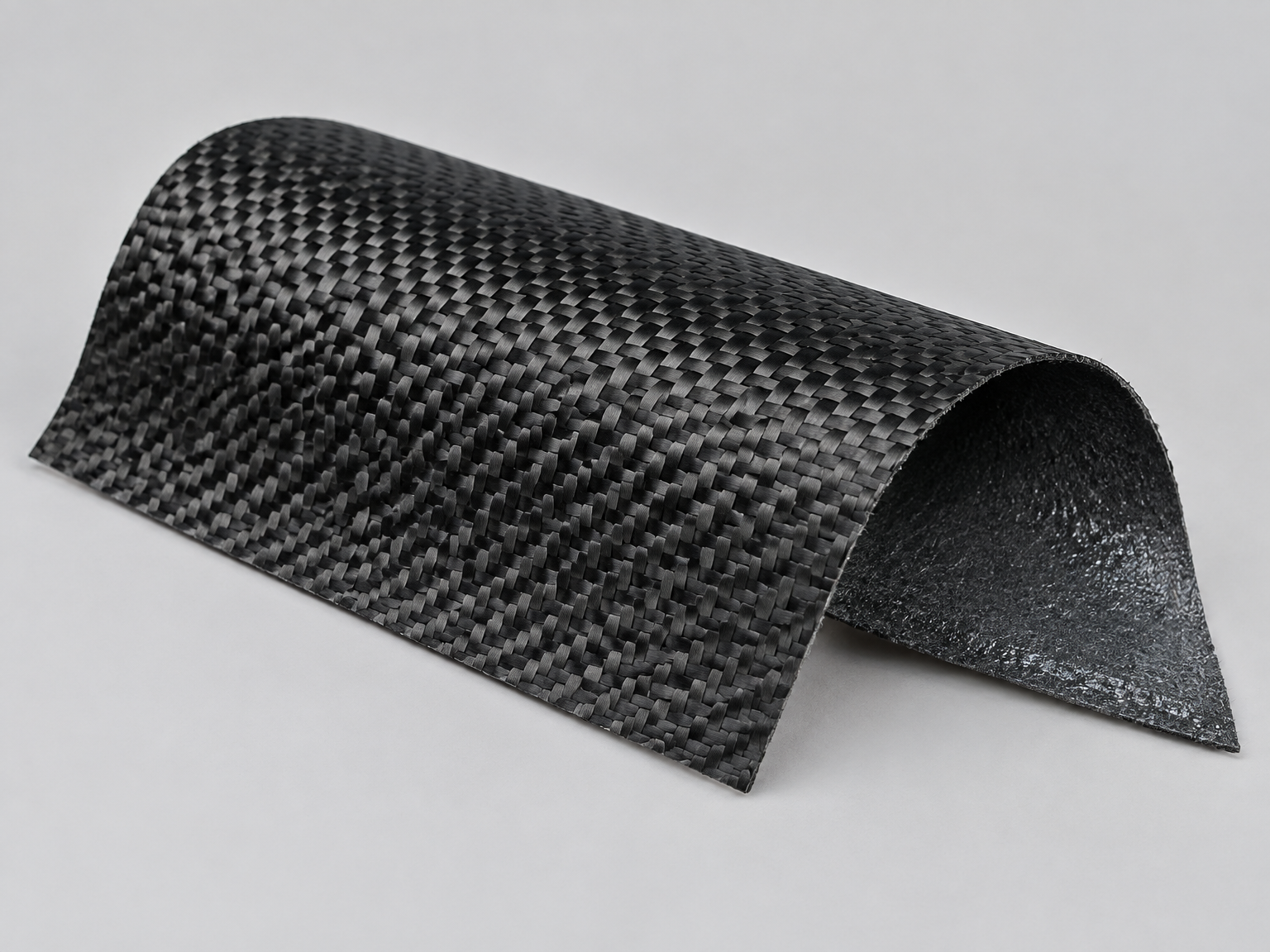

Gas Diffusion Electrode
Carbon cloth electrode with 60% platinum on Vulcan catalyst at 0.5 mg/cm² loading and microporous layer, suited for hydrogen/air fuel cell applications.
From 981 NOK

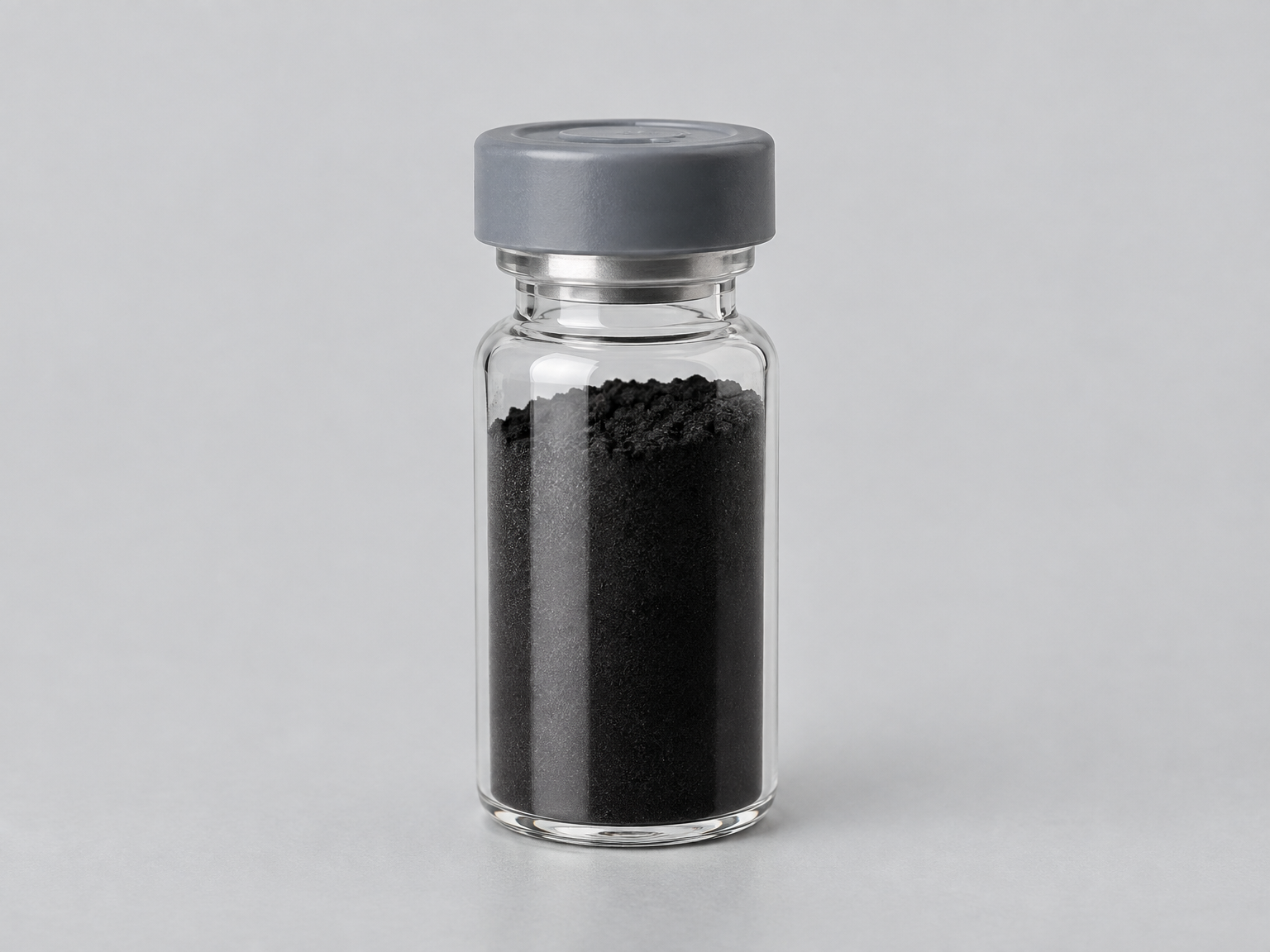

Iridium Ruthenium Oxide Catalyst
High-purity IrRuOx mixed-oxide powder for the oxygen evolution reaction in PEM and AEM electrolyser anodes, with BET surface area of 100–120 m²/g.
From 8177 NOK

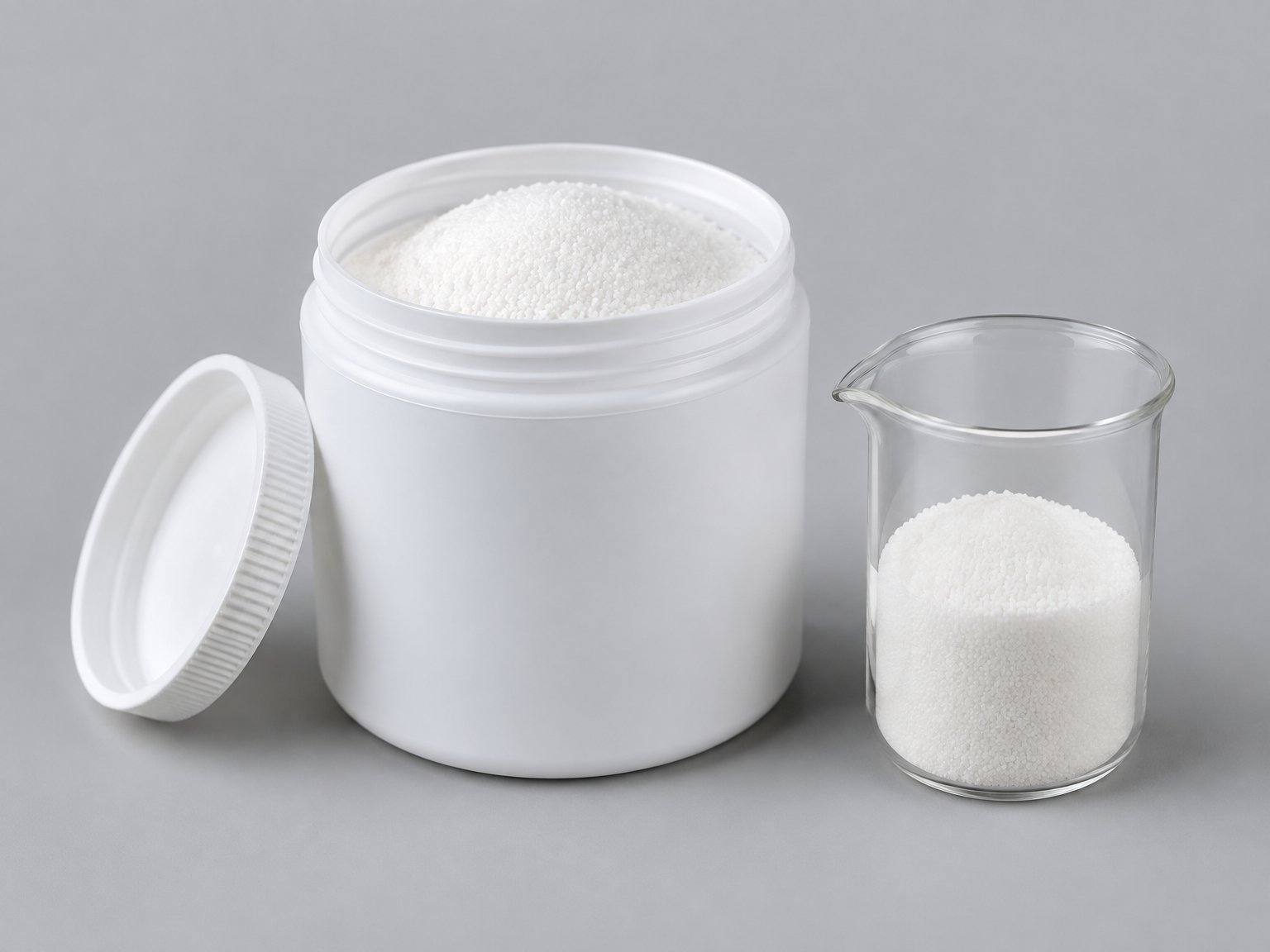

Anion-Exchange Ionomer Resin
Solution-processable anion-exchange ionomer resin for catalyst inks in AEM water electrolysis and alkaline electrochemical applications, with IEC of 2.7–2.9 meq/g.
From 3752 NOK

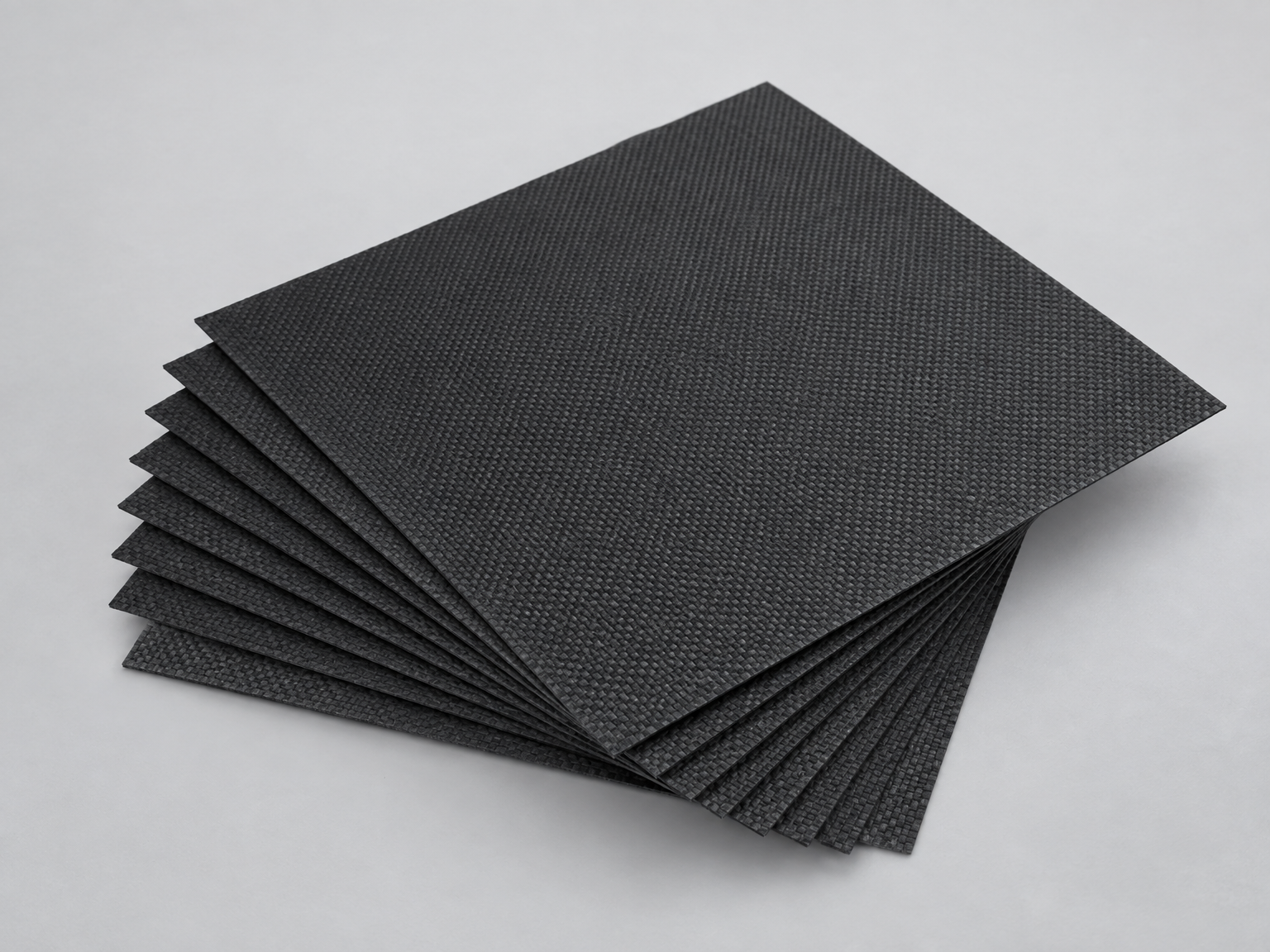

Sigracet 39 BB Carbon Paper
Non-woven carbon paper gas diffusion layer, 315 µm thick with microporous layer and 5 wt% PTFE treatment, recommended for PEM fuel cells and PEM electrolysis.
From 673 NOK

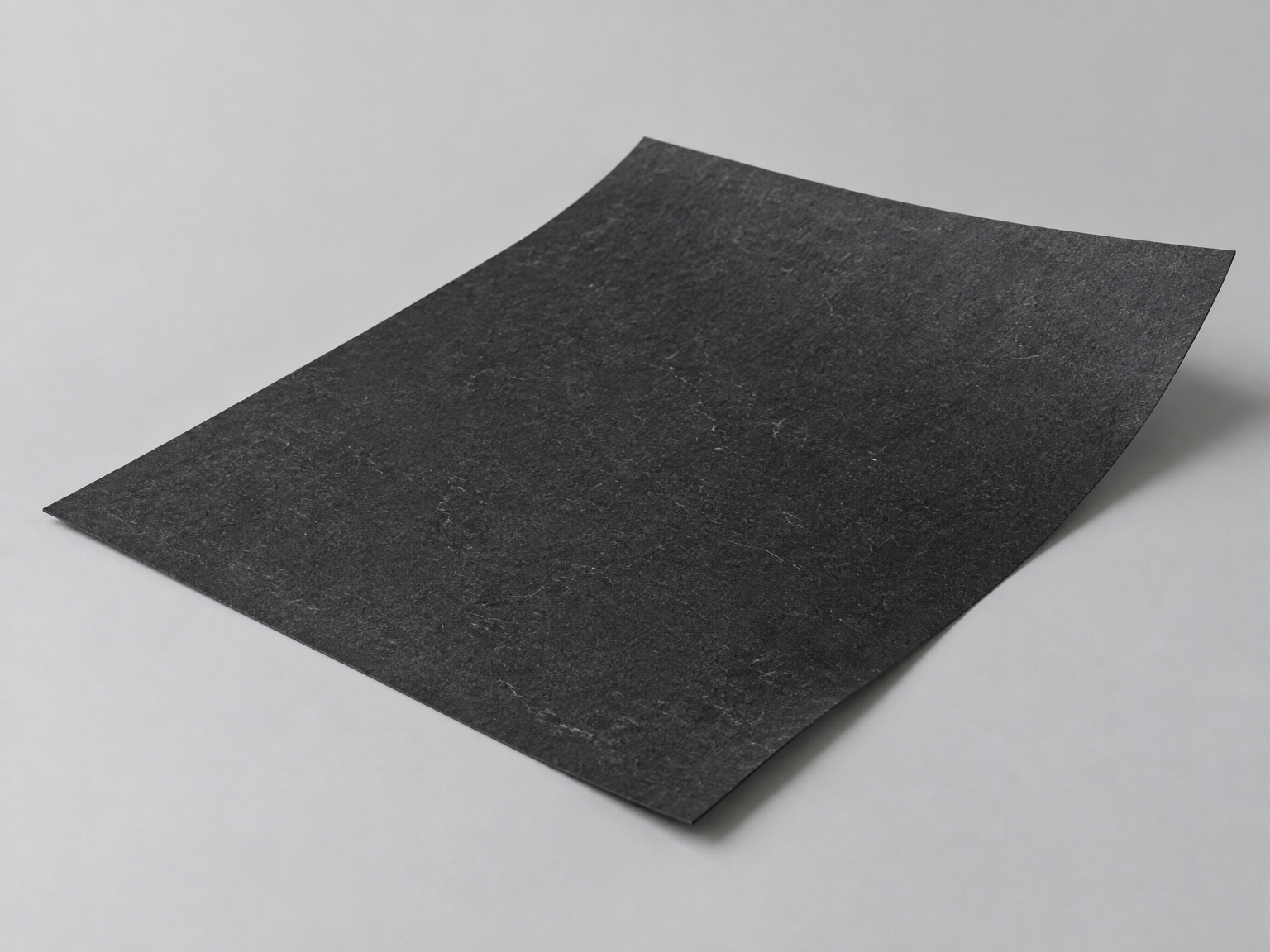

Toray Carbon Paper 060
Carbon fiber composite paper, 190 µm thick with minimum 5 wt% PTFE wet proofing, a low-cost catalyst backing layer for fuel cell and electrochemical applications.
From 269 NOK
Let’s Build the Hydrogen Future
Whether you are looking for hydrogen technology, components, market intelligence or project support, NaSTech is ready to discuss your requirements.
